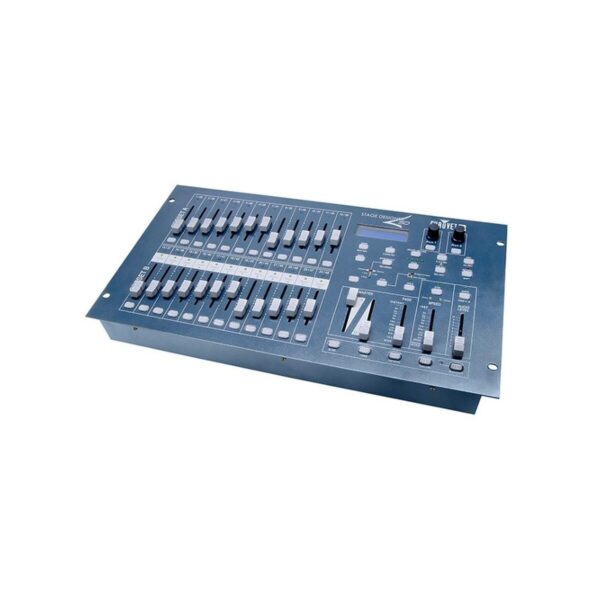

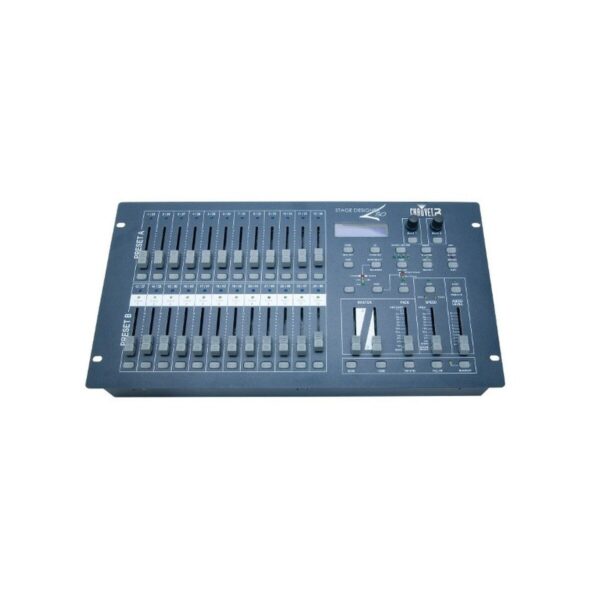

Chauvet DJ Stage Designer 50

SKU SW-8448 Category

Catalogue

The Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

Features:

  • Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
  • Saves desk space by squeezing 48 channels into a 24-channel console
  • Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
  • Increase programming and playback versatility with two programmable auxiliaries
  • Simplify programming by using DMX channel patching to reassign channels
  • Increase flexibility with built-in MIDI support for remote dimming and scene triggering
  • Coordinate your light shows to music using the direct audio input connector or built-in microphone
  • Ability to stack scenes for simultaneous or sequential playback

Specifications:

  • DMX Channels: 48
  • DMX Connectors: 3- and 5-pin XLR
  • Rackmount: 6U
  • Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
  • Weight: 9.9 lbs (4.5 kg)
  • Size: 19 x 10.5 x 3.5” (483 x 267 x 89 mm)
  • Approvals: CE

Programming_instructions_21494.pdf
Product_Specifications_21494_File_2.pdf
User_manual_21494_File_1.pdf

Specifications may be updated or changed to reflect the latest technological advancements, and we highly recommend adopting these upgrades for optimal performance.
