If you‘re running a small lighting rig in a venue, as a rental, or in a retail space, you’ve probably upgraded to LED lights. Why? Because modern LEDs can produce any color without the need for filters, so you can produce fantastic combinations of colors with just a few lights. Sounds great, but you’ve probably noticed that when it comes to choosing a control console most of the ones available either aren’t designed to control color and intensity or are way more complicated (and expensive) than required. This is why Jands have created the Stage CL.
Features:
- Designed specifically for LED fixtures, but just as suitable for conventional; allows full control of LEDs and is incredibly easy to use
- Saturation encoder and Hue encoder for each of the 12 channels, as well as traditional Fader and Flash buttons; an LED on the channel shows the color created while adjusting
- Group any number of channels together and use just one set of pots to set the color for all of them. Selection of color presets to choose from, and switch between full and half saturation, both at the click of a single button.
- Total manual control and easy-to-use store features enable you to create sophisticated shows quickly and easily.
- To record a sequence, simply press the Record button, adjust your lights, then press one of the Scene, Chase or Cuelist buttons to store it. To play it back, just tap the button where you stored it. Adjust the playback speed and chase rate manually with the fade time and chase speed controls. To set up a chase, save each step or create a pattern and automatically build the chase to run across the lights you’ve chosen. Save and organize multiple cues using the touch screen, then save them to a memory stick or portable drive through the USB ports on the back panel.
- Need to make a quick change on the fly? Tap the Snapshot button to save the look you have on stage. The Stage CL holds that look while you adjust any of the other controls to create your next look, then fades into it when you tap the button again.
- Do just about everything without the screen, but for details, the touch-screen display provides an easy-to-use interface. Patch your lights, monitor playback, edit scenes, chases & cues, adjust fade times, apply preset colors and set up the console preferences.
- More than a superb set of lighting controls, it looks and feels great too.
- High-quality 60mm faders, push-button encoders, responsive tactile buttons and multi-color LED indicators, all packaged in a smooth and compact chassis that you can carry in one hand.

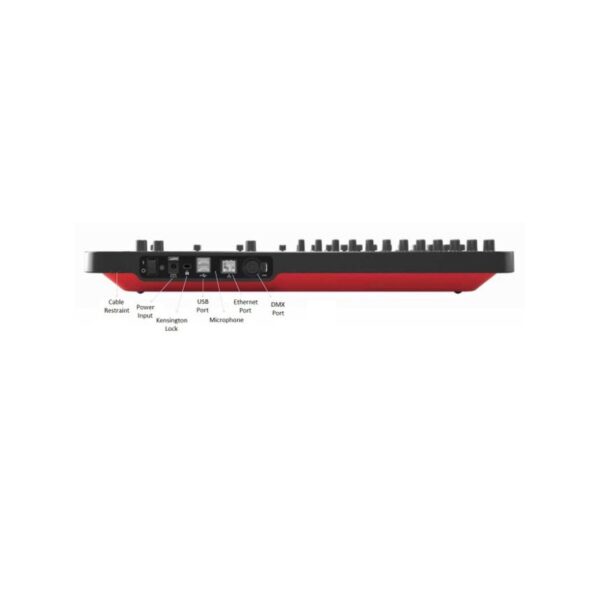

- Controls up to 512 DMX channels, connecting either through the DMX-512 output or the Ethernet output (if your lights support Art-net).
- Made for LEDs, get full use of the power and flexibility these lights offer. All the manual controls and automation you need to get the most out of your LEDs.
Specifications:
- Power supply : 12VDC +/-10% 2A
- Power consumption : 24W max
- Mains connector : 5.5/2.1mm coaxial DC power socket
- Processor : Atmel ARM9
- DRAM : 128MB
- FLASH : 256MB
- Ambient temperature: 0°C – 40°C
- Graphics Display : 480×272 pixel TFT
- Touchscreen : Resistive
- DMX512 : 5 pin AXR
- Ethernet : 100Mbit RJ45
- USB : Two Type A High Speed
- Dimensions : 520 x 260 x 80 mm
- Net / Shipping weight : 8 / 10 kg
